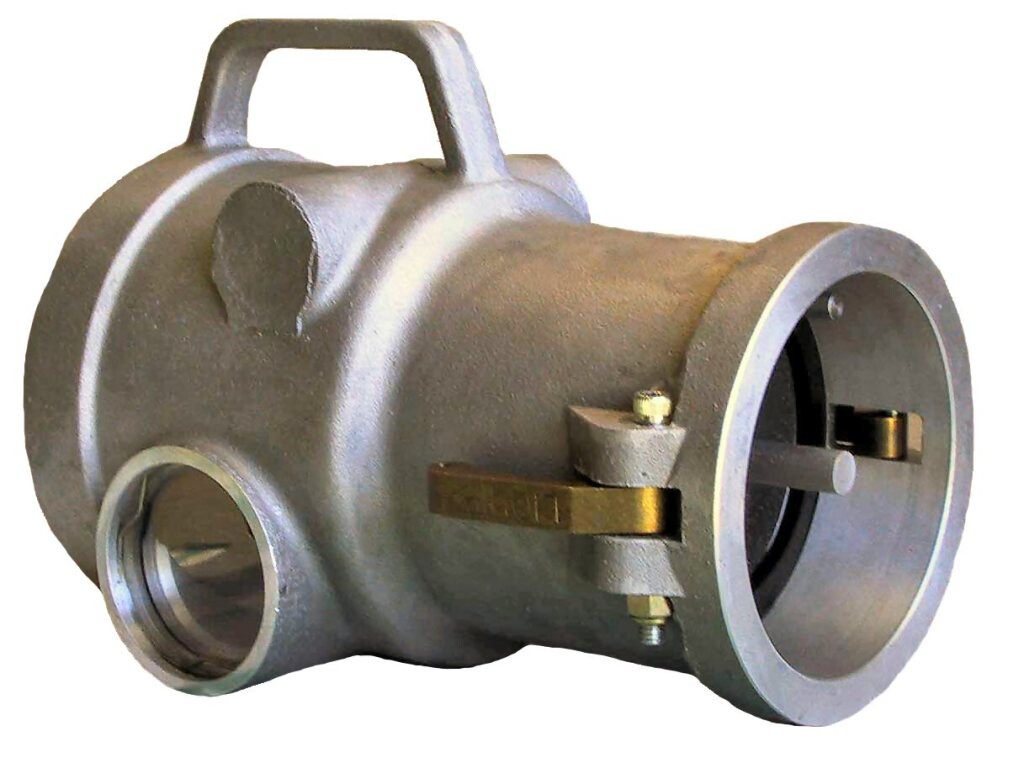

Vapour Coupler - VCF500



Vapour couplers allow for vapour transfer between tanker trucks and loading/unloading tanks.

Liquip's vapour couplers automatically open when connected to a compatible vapour adaptor and automatically seal when disconnected.

Liquip offers a 100mm (4") with poppet and spigot that can be used for vapour transfer between the tank truck and loading/unloading tank.

The VCF500 is a spring loaded coupler that automatically opens when coupled to a compatible adaptor.

Recommended products for replacement

Categories
Features & Benefits
  • Will operate at flow rates up to 10,000 litres per minute at 20°C (4 compartments loading each at 2,500 LPM).
  • Low pressure drop.
  • Unique hinged poppet design provides lower pressure drops than standard poppets at high flows rates.
  • Spring loaded poppet retains vapours until coupled to the male vapour adaptor.
  • Universal 4" (100mm) camlock connection.
  • Automatically seals when disconnected for increased operator safety.
  • Patented “dunny lid” poppet to minimum pressure drop across the valve.
  • Moulded lip seal for reliable sealing.
  • Fitted with a sightglass to view any product left from condensation.
  • Incorporates a carry handle for manoeuvrability.
Technical Information

Size
100mm (4") bore all through for minimum pressure drop.

Materials
-Aluminium body and poppet.
-Brass Cam levers.
-Stainless Steel spring and shaft.
-Viton Seal.

Compatibility
Performs to 97/23/EC Pressure Equipment Direction.
Not compatible with AS5602:2009 compliant vapour adaptors.

NOTE: VCF500 is not suitable for use with Australian SLP compliant vapour adaptors which require interference selectivity counter bore on the vapour couplers. (use VCF075W).

Mounting
100mm (4") TTMA blind flange with 8 off M10 x 20 deep tapped holes.

Weight
3kg.

Ordering Information

VCF500: 4" Vapour Coupler with Dunny Lid. Spigot and blind flange. (Not to AS:5602 and therefore not suitable for use in Australia).

Associated Equipment

VCF075W: 100mm (4”) static safe hosetail & female camlock with 75mm (3”) flow diameter.

VCM450: Vapour adaptor 100mm (4") flow through.

VCM3P: Vapour adaptor with proximity switch holder.

VCM3-F: Al Vapour adaptor 100mm Male to 100mm TTMA flange.

VCFPA: Vapour parking adaptor with proximity switch holder.

FAQs

Will the VCF500 open when mated to a VCFPA parking adaptor?
No. There is a cut out on the VCFPA to prevent the VCF500 from opening when parked.

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart

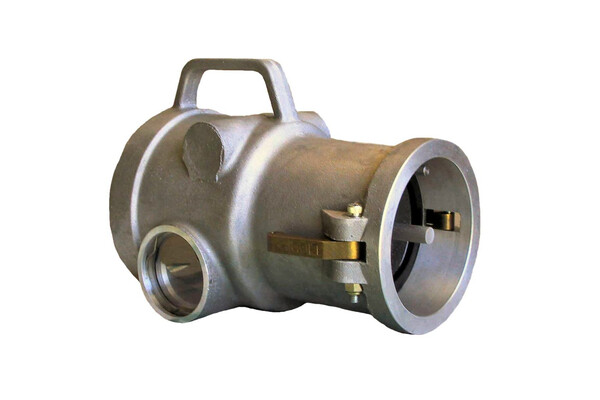

VCF500 4" Vapour Coupler with Dunny Lid. Spigot and blind flange. (Not to AS:5602 and therefore not suitable for use in Australia).
