Single Plane Flange Swivels - HBS Series

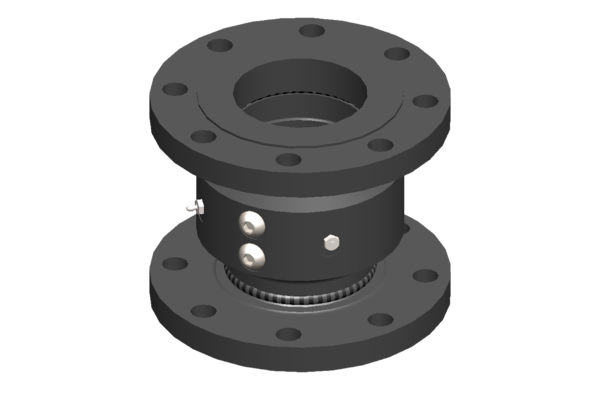

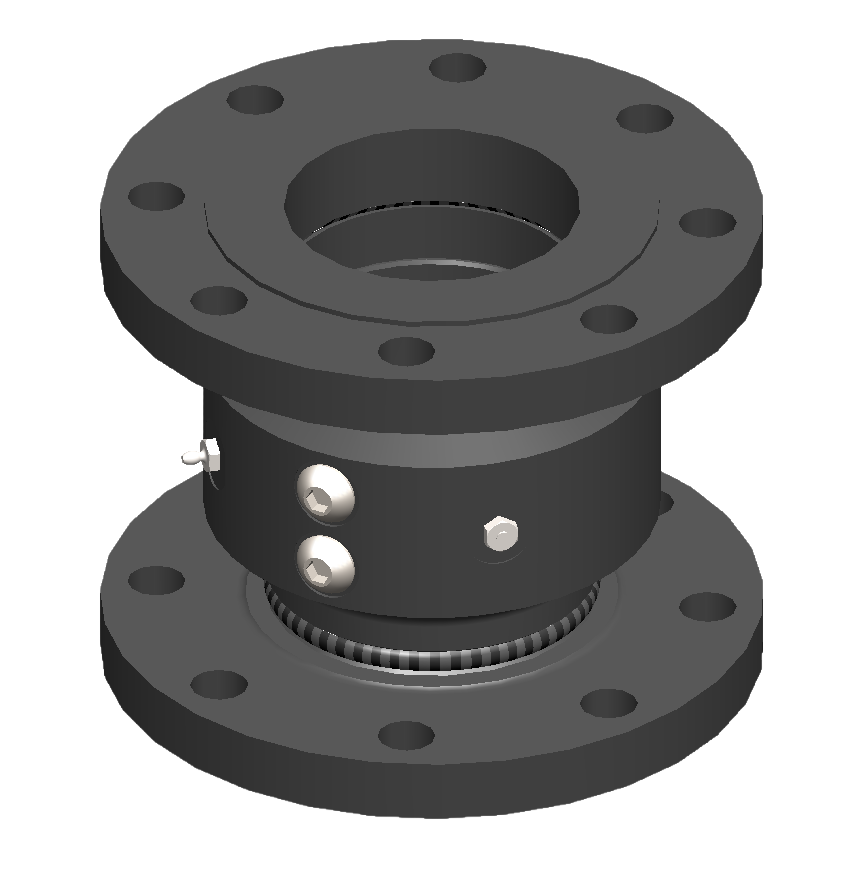

The HBS100xx is a straight single-plane steel swivel (Style 20) with 4" ASME 150 raised face flanged ends.

The HBS100 series swivels use OPWs proven swivel designs and are manufactured to be used as a base swivel on a wide range of loading arms.

The HBS100 is a direct replacement of the LBC4-1 swivel.

Suitable for :

Recommended products for replacement

Categories
Features & Benefits
  • Single-plane swivel direction (Style 20) allows for 360° rotation.
  • O-Rings provide a tight seal without hindering swivel action.
  • Accurately machined and micro-finished grooves provide for minimal seal wear.
  • Body and tail sections are locked together by a double row of ball bearings
  • Raceways are machined to precise tolerances.
  • Double raceway design assures proper alignment and prevents binding caused by temperature changes and heavy radial loads.
  • Protective inner O-ring seal prevents product from entering bearing chamber.
  • Outer seal keeps rain, dirt, and other contaminants out.
  • Ball bearings are hardened, precision-ground steel.
  • A grease fitting between races that accepts a standard grease gun is available for swivels that require field lubrication.
  • Non-lubricating swivels are available on special order.
  • Balls are held in place by factory-installed plugs that never need to be adjusted to maintain bearing performance.
Technical Information

Materials
-Mild Steel body with hardened raceways.
-Viton or PTFE seals.

Design Pressure
1,060 kPa (153 PSI).

Test Pressure
1,600 kPa (232 PSI).

End connections
 4” ASME Class 150 raised face.

Ordering Information

HBS100: 4” ASME Class 150 RF Straight Single-plane Swivel M/S, Viton seals.

HBS100-HT: 4” ASME Class 150 RF Straight Single-plane Swivel M/S, PTFE seals, high temperature paint and grease.

3003K-3400-N940: Swivel Seal Kit 4" to suit HBS100-HT.

H06712M: Ball Bearing to suit HBS100 seires swivels.



Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
HBS100: 4” ASME Class 150 RF Straight Single-plane Swivel M/S, Viton seals. HBS100 SWIVEL BASE 100MM, M/S, ANSI150RF, VITON, BLACK
HBS100: 4” ASME Class 150 RF Straight Single-plane Swivel M/S, Viton seals. HBS100-HT SWIVEL BASE 100MM, M/S, ANSI150RF, PTFE, BLACK, HIGH TEMPERATURE PAINT AND GREASE.
SPARE PARTS
3003K-3400-N940 Swivel Seal Kit 4" to suit HBS100-HT.
H06712M Ball Bearing to suit HBS100 seires swivels.
