LYNX Series Bottom Loading Coupler

Not Just Better In Every Way. The Best In Every Way.

The LYNX Series combines all of the best features of API couplers in one impressive device to provide a superior and effortless bottom loading experience.

Featuring stainless-steel components and coming in at 8.6kg (19 lbs), the LYNX Series coupler is impressive by any measure.

Count on LYNX for years of service and to help minimize fluid loss.

Fast Disassembly, Less Downtime
If you have 30 seconds and a screwdriver, you can disassemble LYNX. Thanks to a U-pin design, loading-arm operators can perform coupler maintenance without special tools and do it quickly.

Note: 5 year extended warranty is applicable to North America only.

Suitable for :

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Features & Benefits

Safety and Reliability

Optimised design to bring your liquid terminals and tank trucks the very best in dry-break API technology.
Minimal product leakage during disconnect increases site safety.
Low risk of leakage because of a proven seal design.
Four, "true interlocking" stainless steel latches ensure secure coupling and maximum safety.
Lightweight without reducing safety and reliability.
High-quality components including a stainless-steel collar and hard anodized aluminum body for increased service durability and life.
Ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 3,400 kPa
Proven seal design

Performance and Convenience

Quick and easy disassembly of entire coupler through U-pin design.
U-pin is secured when the TTMA flange is fastened to prevent the pin from coming out during service.
Fast in-field replacement of main seals, on or off the arm.
Two operating handle sizes to suit customer preference.
Nominal product leakage during disconnect increases site safety.
Collar designed to ensure minimal distortion of critical latching face.
Easy to operate handle with a noticeable positive lock.
A variety of seals available to suit a range of applications

Comfort and Style

Automatic latching.
Ergonomic operating handle and carry loop results in less physical strain on users.
Two operating handle sizes to suit customer preference.

Technical Information

Part	Description
Handle Length	Short 150mm (5.9") or Long 200mm (7.8")
Seal Options	-Viton B. -Viton GFLT (recommended for ethanol blends). -FFKM. -NBR (Nitrile/Buna). -EPDM -Tecnoflon (Ultra Low Temperature) Others available upon request.
Max Working Pressure	80 psi (5.5 bar) (550 kPa).
Product Test Pressure	119 psi (8.2 bar) (820 kPa).
Design Pressure	363 psi (25 bar) (2,500 kPa).
Max Surge Pressure	493 psi (34 bar) (3,400 kPa).
Operating Temperature	Viton B70 -15°C to 90°C (0°F to 200°F). Viton GFLT -28°C to 90°C (-20°F to 200°F). FFKM -5°C to 80°C (-23°F to 176°F). Nitrile/Buna -40°C to 100°C (-40°F to 212°F). EPDM -34°C to 149°C (-29°F to 300°F) Tecnoflon -40°C to 90°C (-40°F to 200°F).
Design Standard	API RP 1004 8^th EDITION 2003 - Bottom Loading and Vapor Recovery; AS5602-2009.
Dismantling	Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn.
Mounting	By industry standard 4” (100 mm) TTMA Flange. 8 holes Ø7/16” on 5.8” PCD, 6.6” outside diameter (Ø11 mm on 149 mm PCD, 168 mm OD). Use spring washers when mounting coupler as per common industry practice.
Adjustment or Service	Refer to Maintenance Instructions document.
Weight	LYNX85x Couplers: 8.6kg (19 lbs.) LYNX86x Couplers: 10.81kg (23.83 lbs.)

Ordering Information

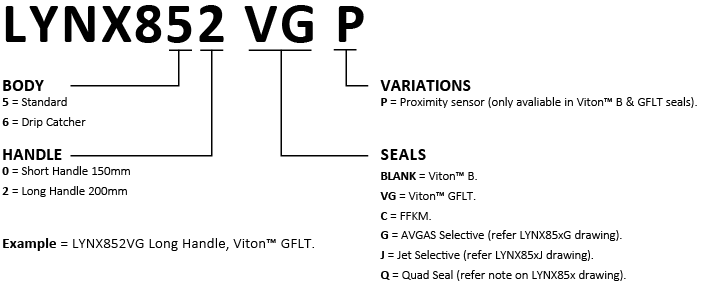

Configurator

Commonly Purchased Variants

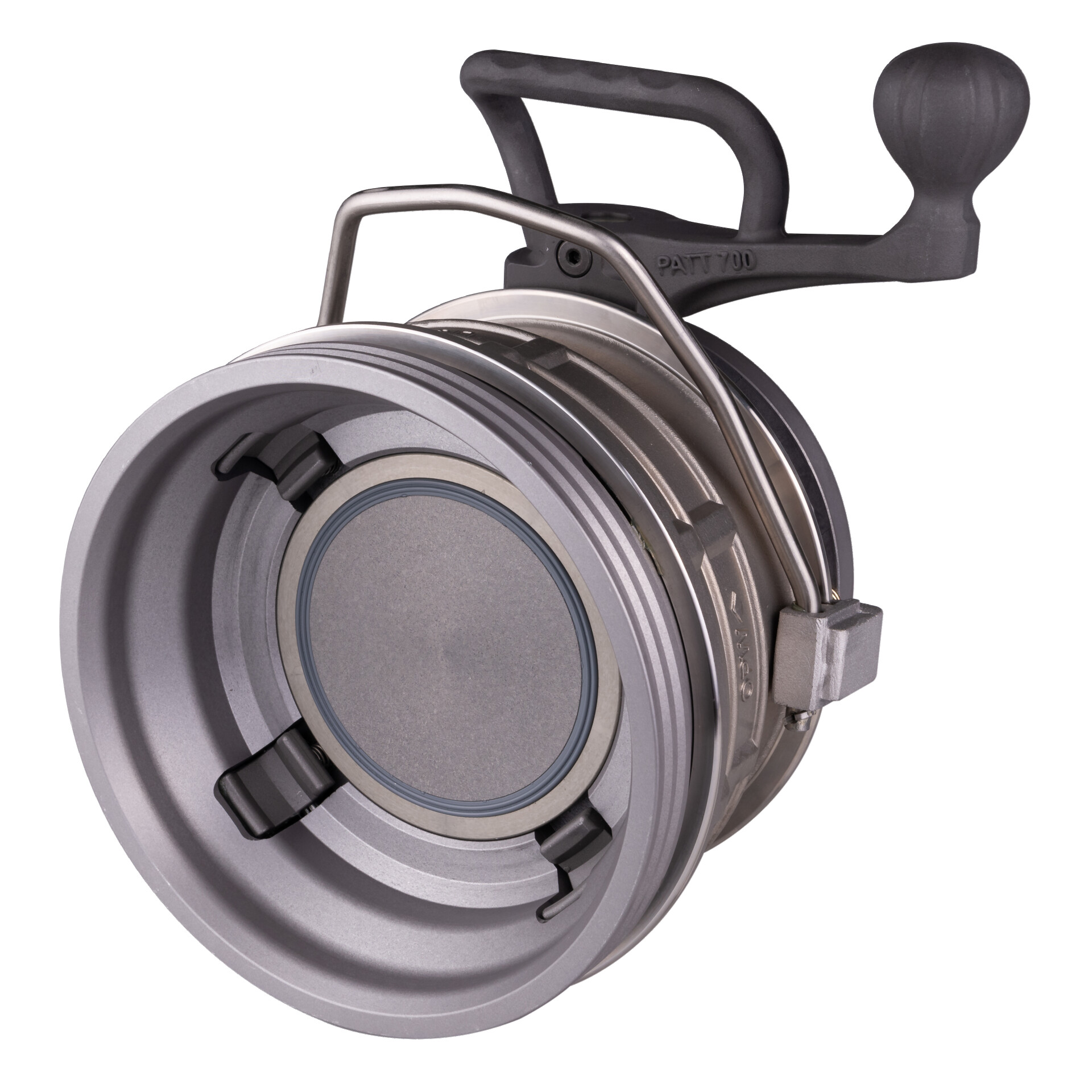

LYNX850: Female API Coupler, Short Handle, Viton B.

LYNX850VG: Female API Coupler, Short Handle, Viton GFLT.

LYNX850C*: Female API Coupler, Short Handle, FFKM.

LYNX850P: Female API Coupler, Short Handle, Viton B, Proximity sensor.

LYNX850VGP: Female API Coupler, Short Handle, Viton GFLT, Proximity sensor.

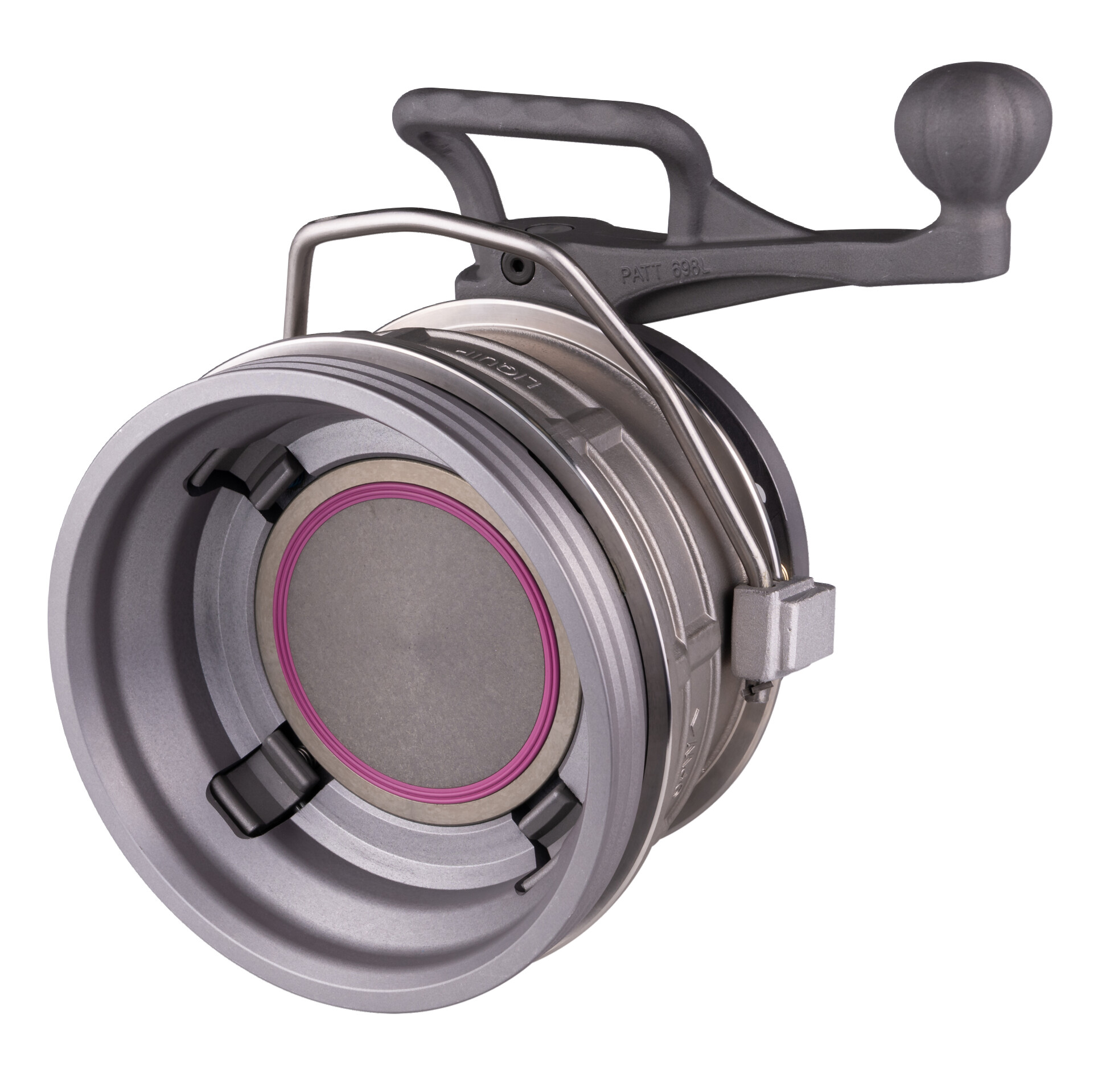

LYNX852: Female API Coupler, Long Handle, Viton B.

LYNX852VG: Female API Coupler, Long Handle, Viton GFLT.

LYNX852C*: Female API Coupler, Long Handle, FFKM.

LYNX852G: Female API Coupler, Long Handle, Viton B - AVGAS Selective.

LYNX852J: Female API Coupler, Long Handle, Viton B - Jet Selective.

LYNX852VGP: Female API Coupler, Long Handle, Viton GFLT, Proximity sensor.

LYNX860: Female API Coupler, Short Handle Drip Catcher, Viton B.

LYNX860VG: Female API Coupler, Short Handle Drip Catcher, Viton GFLT.

LYNX862: Female API Coupler, Long Handle Drip Catcher, Viton B.

LYNX862VG: Female API Coupler, Long Handle Drip Catcher, Viton GFLT.

*Product wetted components have been chosen for increased resistance to an wider range of fluids than other LYNX models. The materials used in the "C" versions are listed on the LYNX datasheet. Final product suitability is the responsibility of the end user.

Note: Please see datasheet for other seal options and for a list of spare parts available.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart

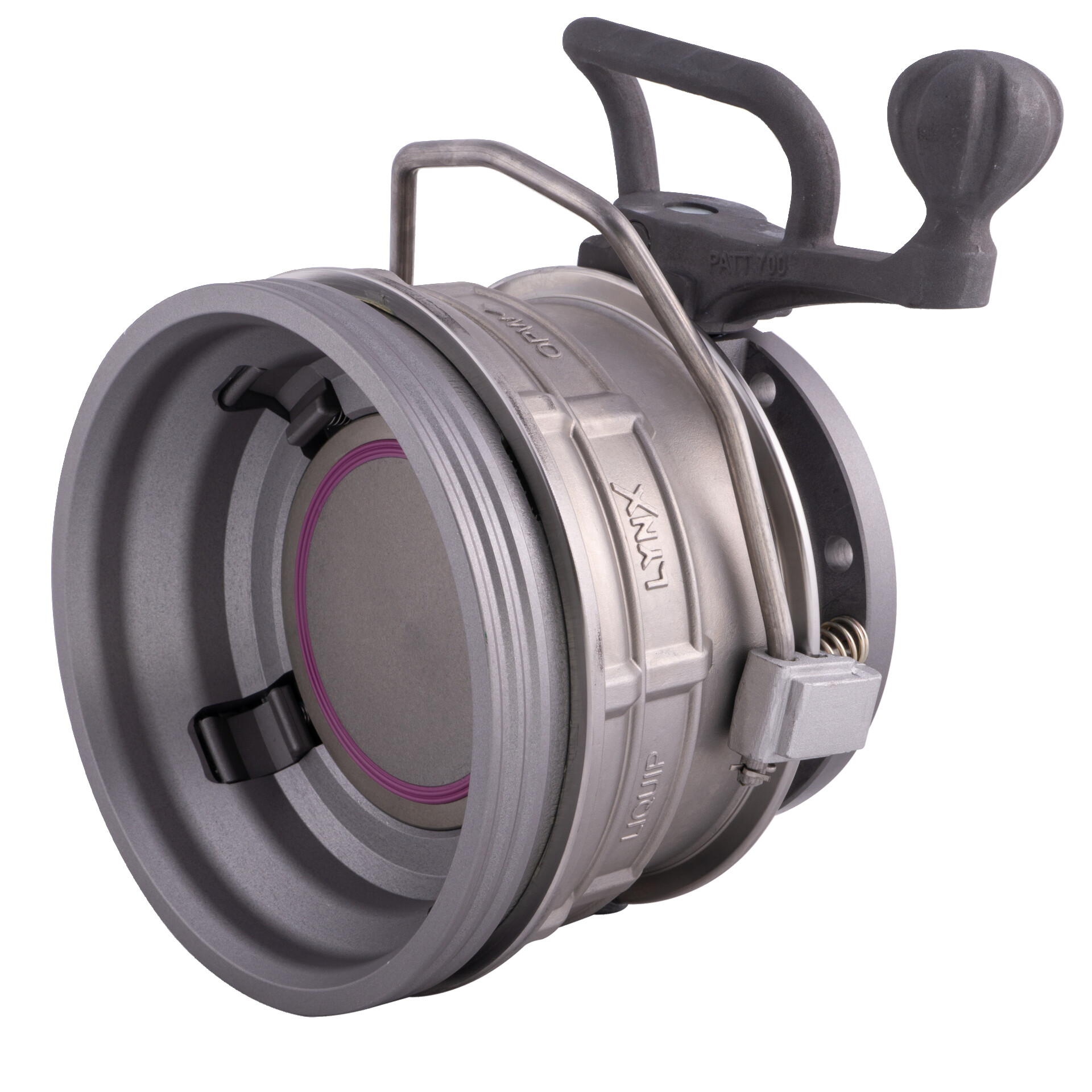

	LYNX850	Female API Coupler, Short Handle, Viton B.
