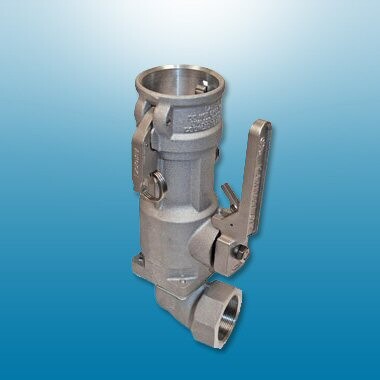

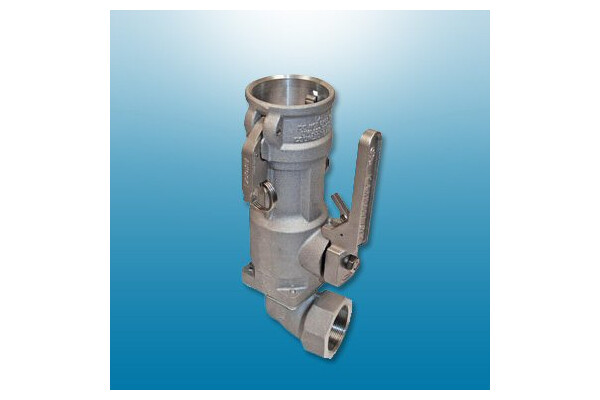

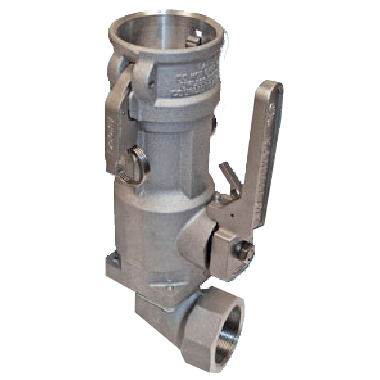

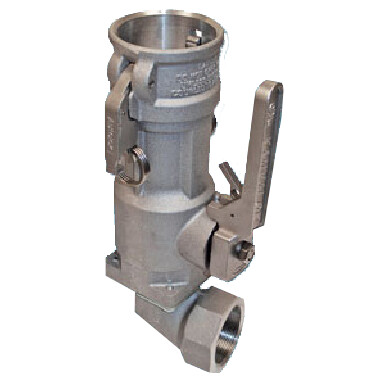

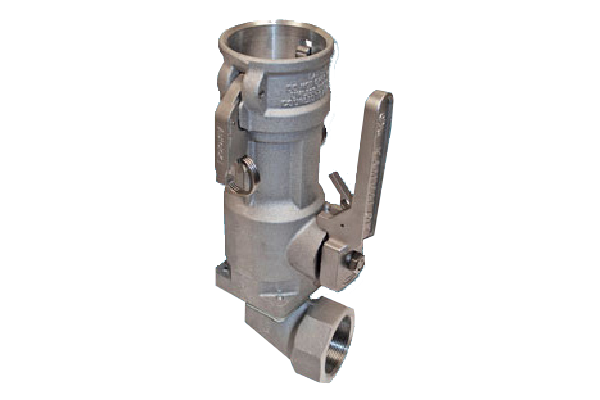

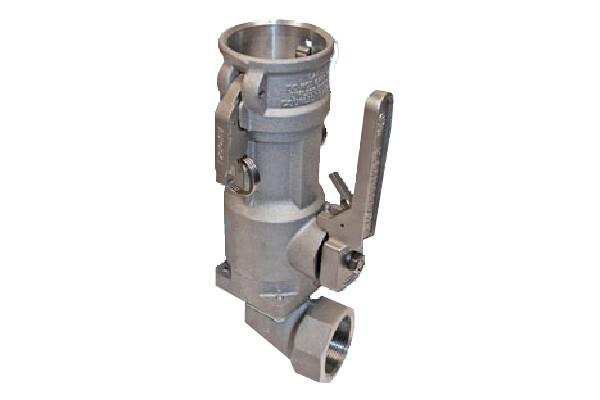

Kamvalok® 1700ESL & 1700ES Series Transportation Couplers
Transport Series Dry Disconnect Couplings are considered the standard of the industry for use on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit.
Applications
Below is a listing of some of the products/applications that have successfully used Kamvalok® couplers.
| Chemical | Application |
|---|---|
| Acetone | Tank Cars |
| Acrylates | In Plant |
| Acrylic Acid | Tank Truck |
| Acrylonitrile | Tank Cars |
| Acrylonitrile, MMA, Butyl Acrylate | |
| Allyl Chloride | |
| Allyl Lites | |
| Amines (Various) | Tank Truck |
| Anthranilic Acid (AA) | Tank Cars |
| Anthranilic Acid (AA) | Tank Truck |
| Automotive Paint | In Plant |
| Benzene | Tank Cars |
| Benzene | Tank Truck |
| Butyl Acrylate | Tank Trucks |
| Butyl Acrylate, Acrylic Acid, Acrylic Monomers | |
| C5 Raffinate | Tank Truck |
| Crude Acetone | Tank Truck |
| Crude MBA | Tank Truck |
| CTLO (coal tar light oil) | Tank Cars |
| Cumene | Tank Truck |
| DCDP | Tank Truck |
| Diesel Exhaust Fluid (DEF) | Totes |
| Dow Therm | Tank Trucks |
| Enserv | Totes/trucks |
| Epichlorohydrin | Tank Cars |
| Ethelyne Oxide | Rail Car |
| Ethyl Acrylate | Tank Cars |
| Ethyl Acrylate | Tank Truck |
| Ethylene Oxide (EO) | Tank Cars |
| Flex Caustic | Tank Truck |
| Glycol (deicing fluids) | Tank Trucks |
| Hydrogen Peroxide | Rail Car |
| Isoprene | Tank Truck |
| Isopropyl Alcohol | Tank Truck |
| Light Paralysis Oil | Tank Truck |
| LRO | Tank Truck |
| Lubricating Oils | Tank Trucks |
| Methanol | Rail Car |
| Mixed Alcohol | Tank Truck |
| Monochloroacetic Acid, 80% Solution (MCAA) | |
| Nitirc Acid | Tank Truck |
| Paralysis | Tank Truck |
| Peperzine | Tank Truck |
| Piperylene | Tank Truck |
| Polyol | Rail Car |
| Propylene | Tank Cars |
| Propylene Oxide (PO) | Tank Truck |
| Propylene Oxide (PO) | Rail Car |
| RTBA | Tank Truck |
| Sour Gasoline | Tank Cars |
| Spent Caustic | Tank Truck |
| Styrene | Tank Truck |
| Styrene | Rail Car |
| Sulfuric Acid (H2SO4), virgin 96% | Tank Truck |
| Tebol 99 | Tank Truck |
| Telene (tobacco herbicide) | Totes/trucks |
| Telone II | |
| Tert-Butyl Hydroperoxide (TBHP) | Tank Truck |
| Trichlorobenzoic (TBA) Acetone | Tank Truck |
| Trichlorobenzoic (TBA) Heavies | Tank Truck |
| WFE Distillate | Tank Truck |
| WFE Feed | Tank Truck |
| WFE Heavies | Tank Truck |
Features & Benefits
- Available in 2”
- Aluminium material of construction.
- Offered with or without AutolokTM Locking Arms.
- Features Poppeted Seal Cylinder with Snap-on Nose Seal.
- Simple Cam and Groove Design with Lever Actuation.
- 360° Orientation – coupler can be connected in any orientation onto the adaptor.
- Manufactured in compliance with the highest quality standards of design, materials and construction.
- Spill Protection - Helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous materials.
- Autolok™ Locking Arms - Provide added protection with an automatic locking mechanism signaled by a positive click. Uncoupling requires only an easy tug on the lock release.
- Provides For Total Closed-Loop Loading Capabilities - When used with the OPW 2173N Vapor Recovery Dry Disconnect coupling protects people and property from dangerous and potentially costly exposure by keeping hazardous liquids and vapors in-line and out of the environment.
- Dual Protection - OPW Kamvaloks® provide automatic closure from both directions - the coupler and the adaptor.
- Ease of Use - The simple connection and disconnection design and lever actuated internal poppet configuration makes this the first choice for liquid transfer operations.
-
Technical Information
700ESL
Design Parameters
Dimensions
Materials
Size In Inches (Nominal) 2" A Top of body to centerline of elbow 9-9/16" B Centerline of elbow to end of elbow 2-3/4" C Distance across cam arms when closed 4-3/8" C1 Distance across cam arms when open 8" D Centerline of stem to end of handle 4-5/8" E Diameter of coupler end 3-33/64" F Length of unit 11-3/16" G Centerline of coupler to outside of handle 3-5/8" H Pipe thread (NPT) 2" J Distance across flats of octagon 3" Parts Breakdown
1700ES
Dimensions
Parts Breakdown
2” ES KAMVALOK COUPLER PARTS LIST
Temperature/Pressure Chart
Kamvalok Operations
Approvals
AAR Number Description E129504 1600AN Series Kamvalok Adpater – Threaded E129505 1600ANF Series Kamvalok Adapter – Flanged E129507 634B/733DCL Series Kamlok/Autolok Dust Caps CRN Number Region Description OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok -
Ordering Information
Order Guide
Ordering Specification:
1700ESL
Prod. No. Size/Description 1711ESL-AL20 2” KVL Coupler/Elbow Swivel, Locking Arms, Buna-N 1712ESL-AL20 2” KVL Coupler/Elbow Swivel, Locking Arms, Fluorocarbon 1714ESL-AL20 2” KVL Coupler/Elbow Swivel, Locking Arms, EPDM Order Guide
Ordering Specification:
1700ES
Prod. No. Size/Description 1711ES-0200 2” Aluminum, Acetal, Buna-N Seals 1712ES-0200 2” Aluminum, Acetal, Fluorocarbon Seals 1714ES-0020 2” EPDM Aluminum, Acetal, EPDM
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
| 1700ES | |||
|
1711ES-0200 | 2” Aluminum, Acetal, Buna-N Seals | |
|
|
1712ES-0200 | 2” Aluminum, Acetal, Fluorocarbon Seals | |
|
|
1714ES-0020 | 2” EPDM Aluminum, Acetal, EPDM | |
| 1700ESL | |||
|
|
1711ESL-AL20 | 2” KVL Coupler/Elbow Swivel, Locking Arms, Buna-N | |
|
|
1712ESL-AL20 | 2” KVL Coupler/Elbow Swivel, Locking Arms, Fluorocarbon | |
|
|
1714ESL-AL20 | 2” KVL Coupler/Elbow Swivel, Locking Arms, EPDM | |
