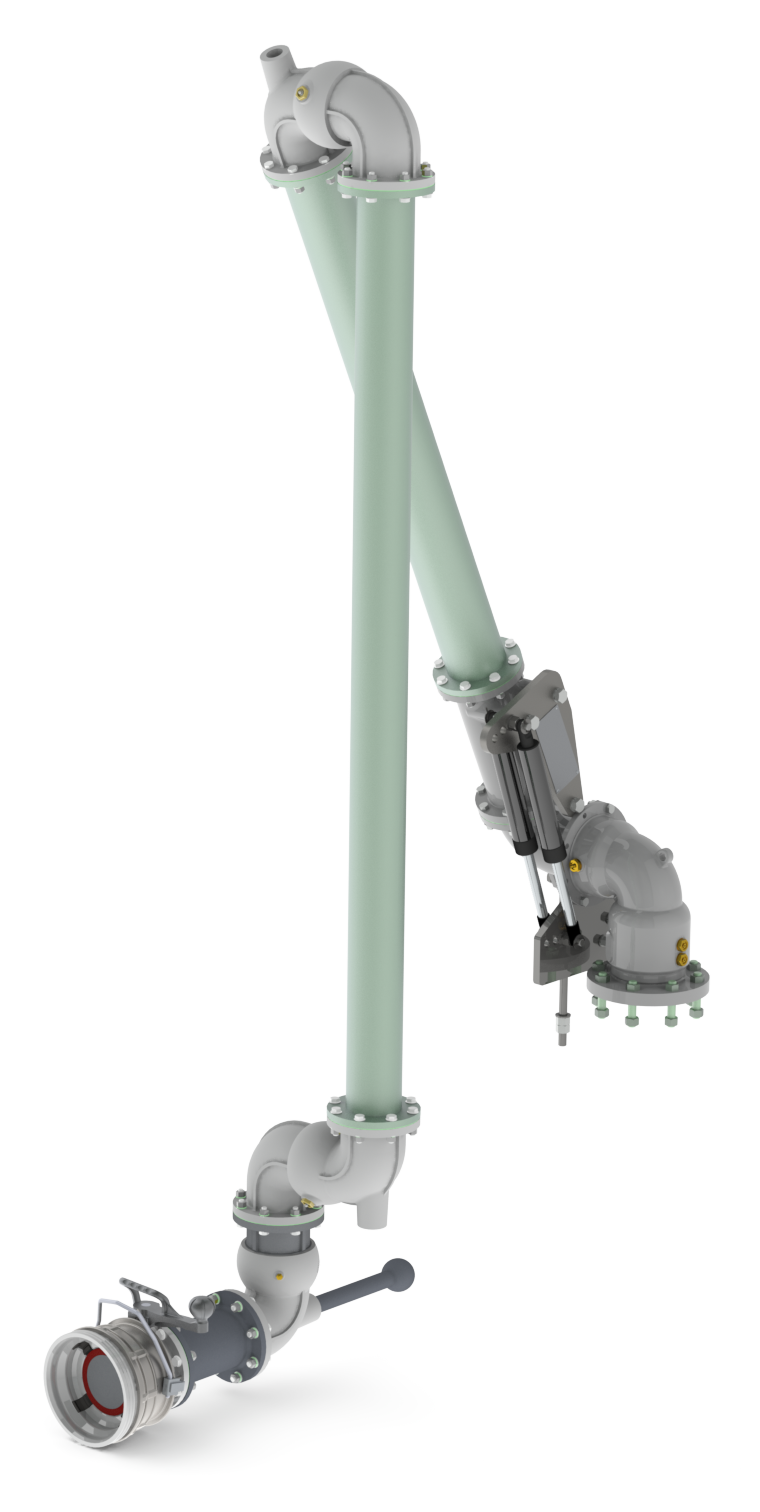

A-Frame Load Arms



A-Frame loading arms by Liquip provide superb flexibility and long reach bottom loading combined with an easy to use and comfortable design.

A-Frame loading arms are commonly used for bottom loading applications but can also be used in top loading installations.

A-Frame loading arms can be parked upright, near vertical position for convenient storage and allows the arms to be used on either side of the loading island.

Recommended products for replacement

Categories
Features & Benefits
  • Preferred where space limitations exist in the loading rack.
  • Compact design allows A-frame arms to be mounted next to one another and can achieve arm cross-over for simultaneous compartment loading.
  • Easily stored away from vehicles and can be mounted close to another arm for multiple arm applications.
  • Allows for easy handling of the loading arm and can easily fit the standard API envelope.
  • Easy to adjust design for elevation/tilting during loading.
  • Uses Liquip’s unique gas strut “Velvet Touch“ technology.
  • Custom designs are available to suit individual loading applications and configurations.
Technical Information

Materials
Mild steel / Aluminium / Stainless Steel

Design Pressure
1,000 kPa.

Test Pressure
1,500 kPa.

Temperature limits
-28°C to +90°C (-18°F to +194°F)  - GFLT seals.

Range of motion
Horizontal 360°,
Vertical +25° to +65°.

Typical Horizontal Spacing
600mm

Typical Reach
Up to 2000mm

End connections
Balance Mechanism Inlet  - 4” (DN100) ASME 150 RF flange.
Outlet Coupling - API Coupler

Counter balance type
Single or Dual gas struts.

Maximum coupling pressure
517 kPa working.

Primary seal materials
Viton™ Teflon™ and FFKM (Others on request).

Dust seal material
Buna Nitrile or HAN. (Others on request).

Gasket material
Klinger or Viton™ A. (Others on request).

Product Compatibility
Typical products handled by A-frame arms include: Diesel, Jet Fuel, Petrol and various chemicals etc.



Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the Liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

​A-Frame loading components

  • Primary arm with base swivel.
  • Balance assembly.
  • Gas struts.
  • Intermediate swivel.
  • Drop spool/Drop hose.
  • Double plane, coupler swivel assembly.
  • Coupler spool.
  • API dry break couplers.
  • Butterfly valves.
  • Sightglasses.
