Stainless Steel Air Operated Vapour Vents

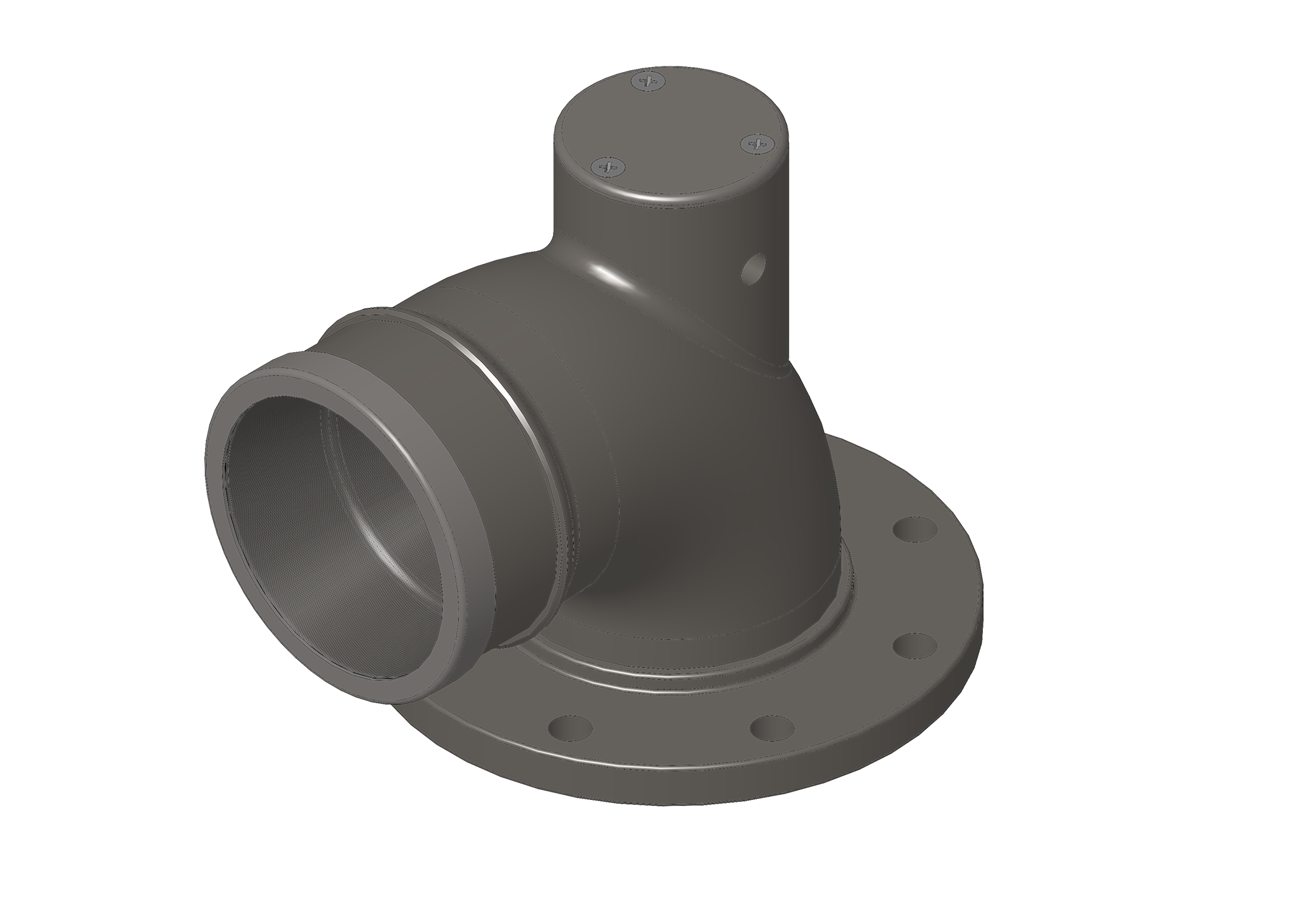

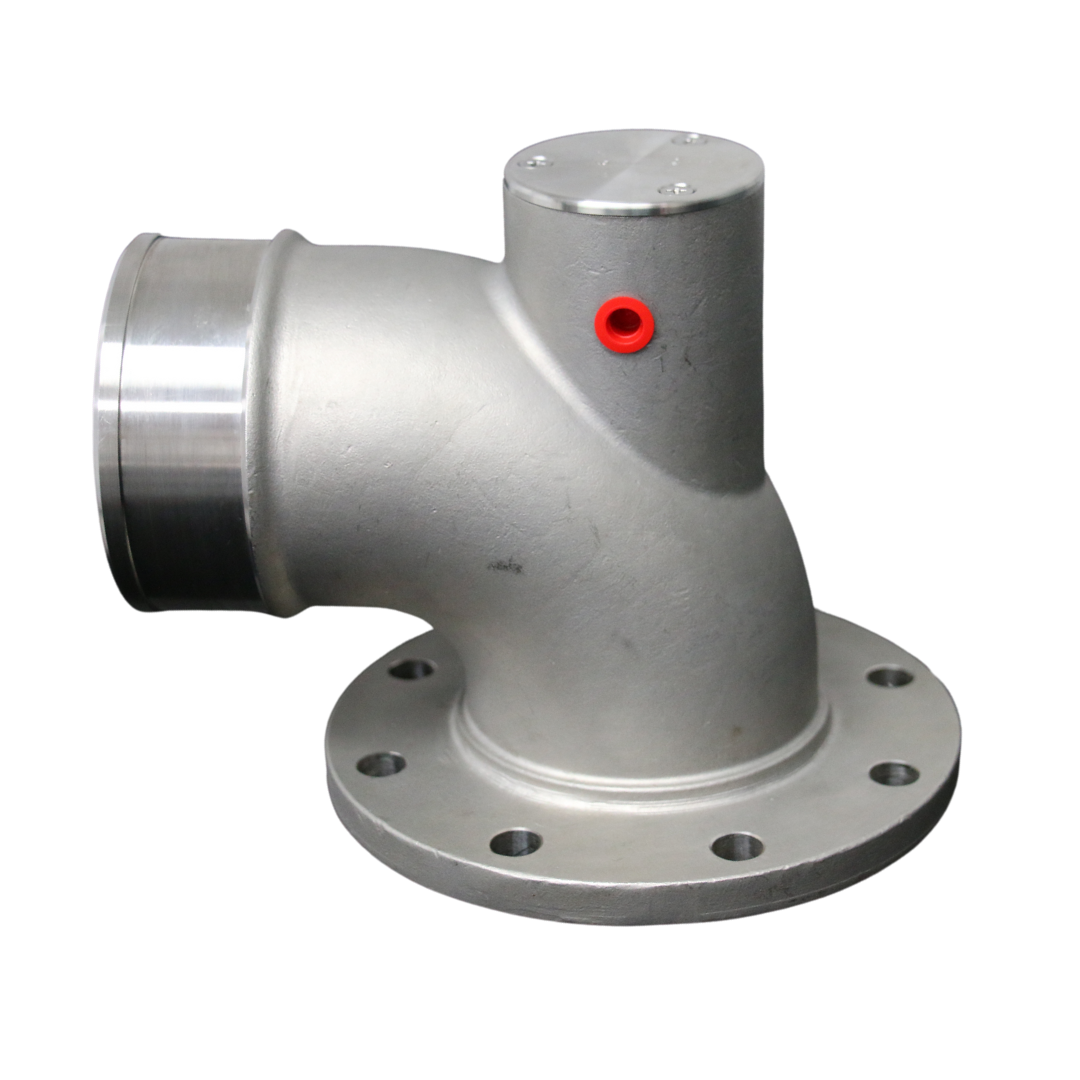

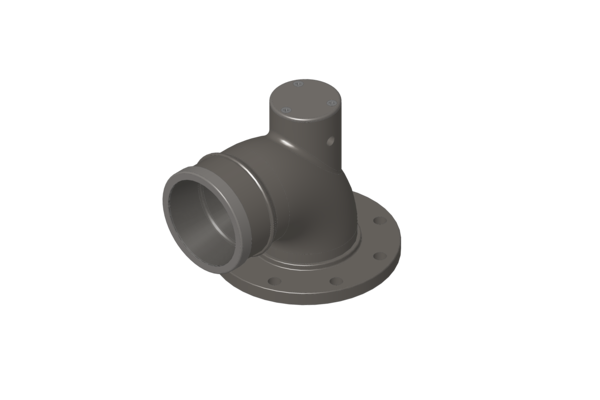

Liquip's AVV3SSxx is an air operated chemical vapour vent that has been designed for superior chemical compatibility and resistance.
The AVV3SSxx is a sequential vapour vent with the exhaust from the previous vent opening the next in line. The outlet from the last vent can be used via a pressure switch to activate the overfill protection system, once all vents are open.
It has a 90mm nominal diameter opening for reduced pressure drop and increased vapour flow during loading and unloading.
Features & Benefits
- Adjustment free.
- Low maintenance.
- 90mm nominal diameter opening for minimum full 80mm flow throughout.
- Piston operation for sequential operation.
- Downward opening poppet to prevent leaks from product surge, in the event of a tanker rollover.
- The sequencing valve is offered to ensure the main poppet is fully open before next vent opens.
- The end signal can then be used to allow loading/unloading in the certainty that all vapour vent poppets are open.
- Air cylinder is serviceable without removing the valve from tank.
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
|
AVV3SSC | Chemical Air operated vapour vent, FFKM seals. | |
|
AVV3SSVG | Chemical Air operated vapour vent, Viton GFLT seals. |
