Aluminium Air Operated Vapour Vents

Liquip's AVV Series of aluminium sequential air operated vapour vents have a 90mm nominal diameter outlet and are sequentially air actuated to allow the venting of vapour from tanker truck compartments while loading or unloading.

The AVV series can be used in conjunction with an overfill protection interlock that prevents loading if the vapour recovery system has failed to fully activate.

Features & Benefits

Aluminium construction with Viton seals as standard.
The sequencing valve is offered to ensure the main poppet is fully open before next vent opens.
Bolted from inside tank. Gauze in body prevents access through outlet spout in certain models (optional)
The end signal can then be used to allow loading/unloading in the certainty that all vapour vent poppets are open.
The sequencing valve can be blanked if not required.
The poppet opens inwards to prevent leakage and spills from product surge in the event of a tanker rollover.

Technical Information
Ordering Information
Associated Equipment
Resources

Technical Information

Operating Pressure
Operating air pressure 120 kPa to 900kPa. (Normal 500kPa).

Air Consumption
1.0L free air per stroke.

Mounting
Directly on to manhole covers VOH750 and VOH410 or by weld flanges in aluminium or steel.

Materials
-Aluminium body.
-Acetal Piston with viton seal, as standard.
-Teflon Piston with FFKM seals are available (AVV075K).

Ordering Information

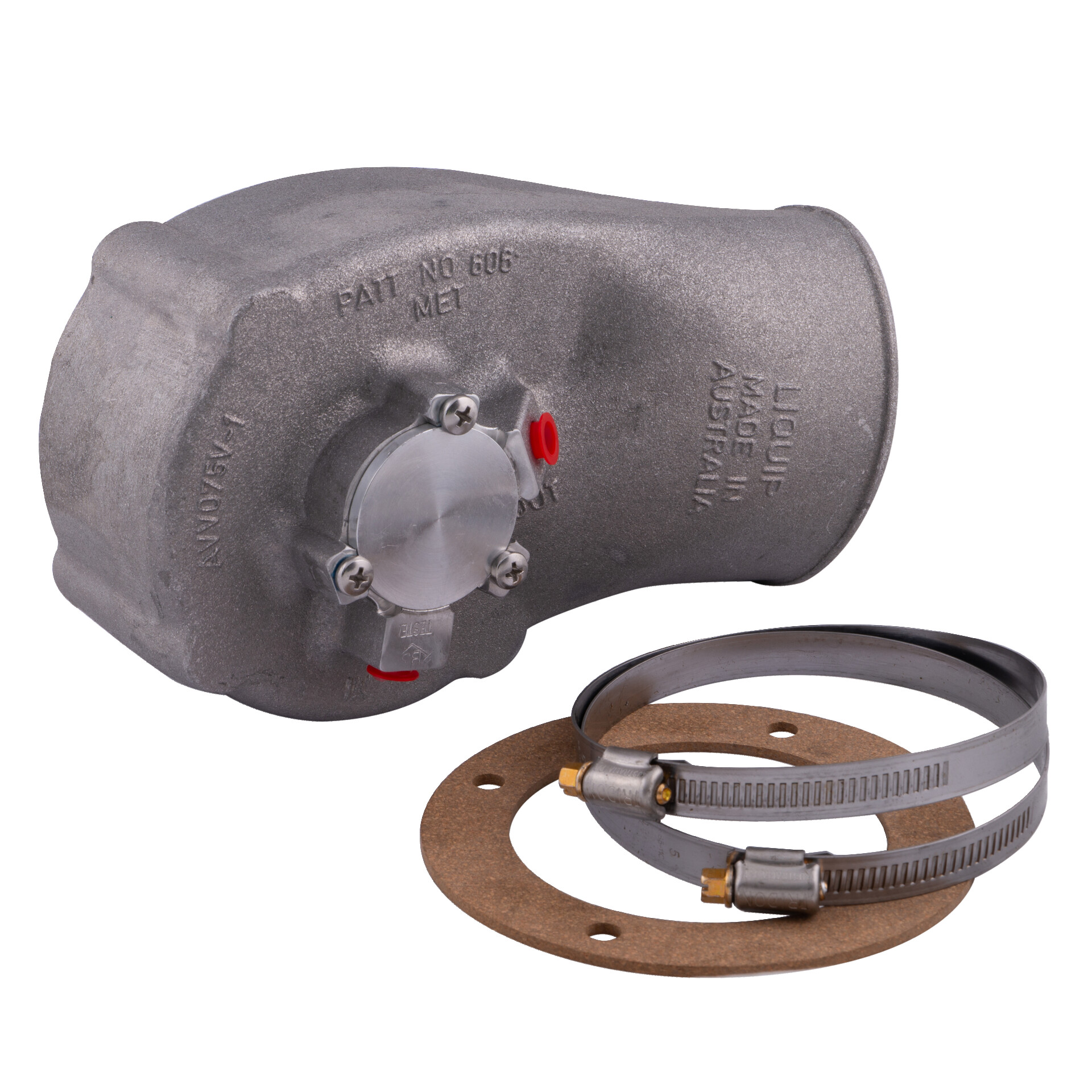

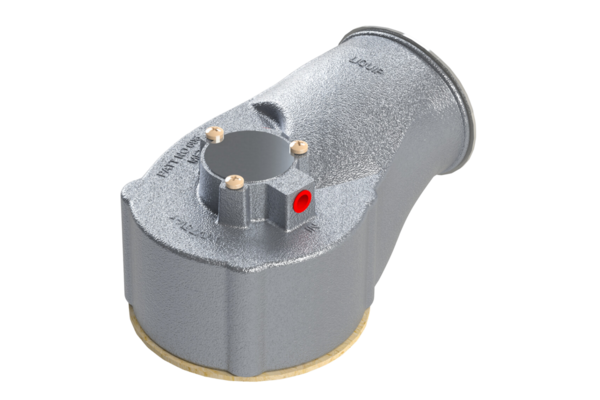

AVV075V: Sequential Vapour Vent with Viton o-rings.

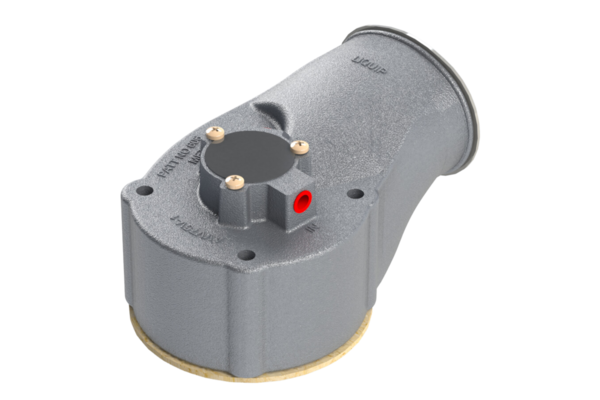

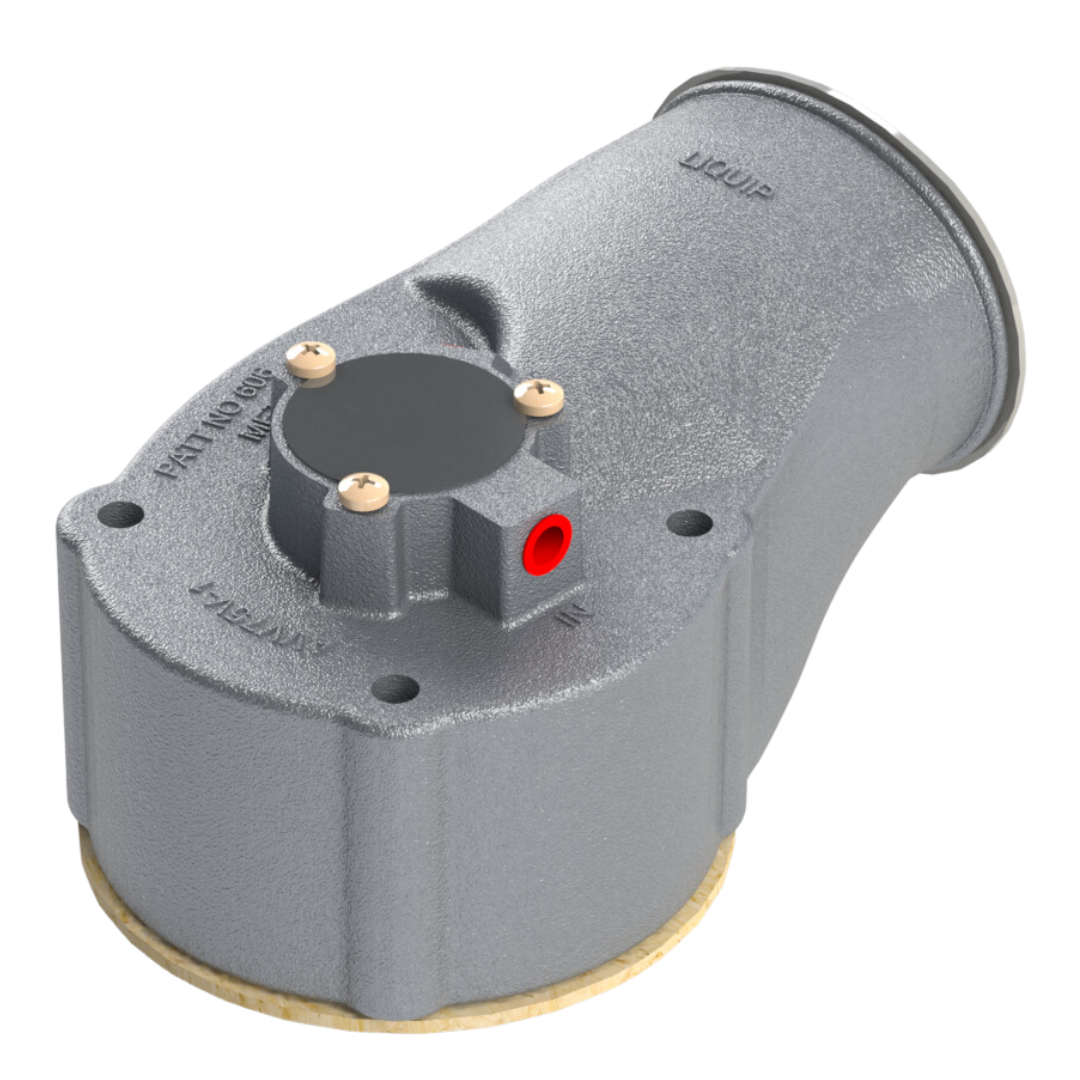

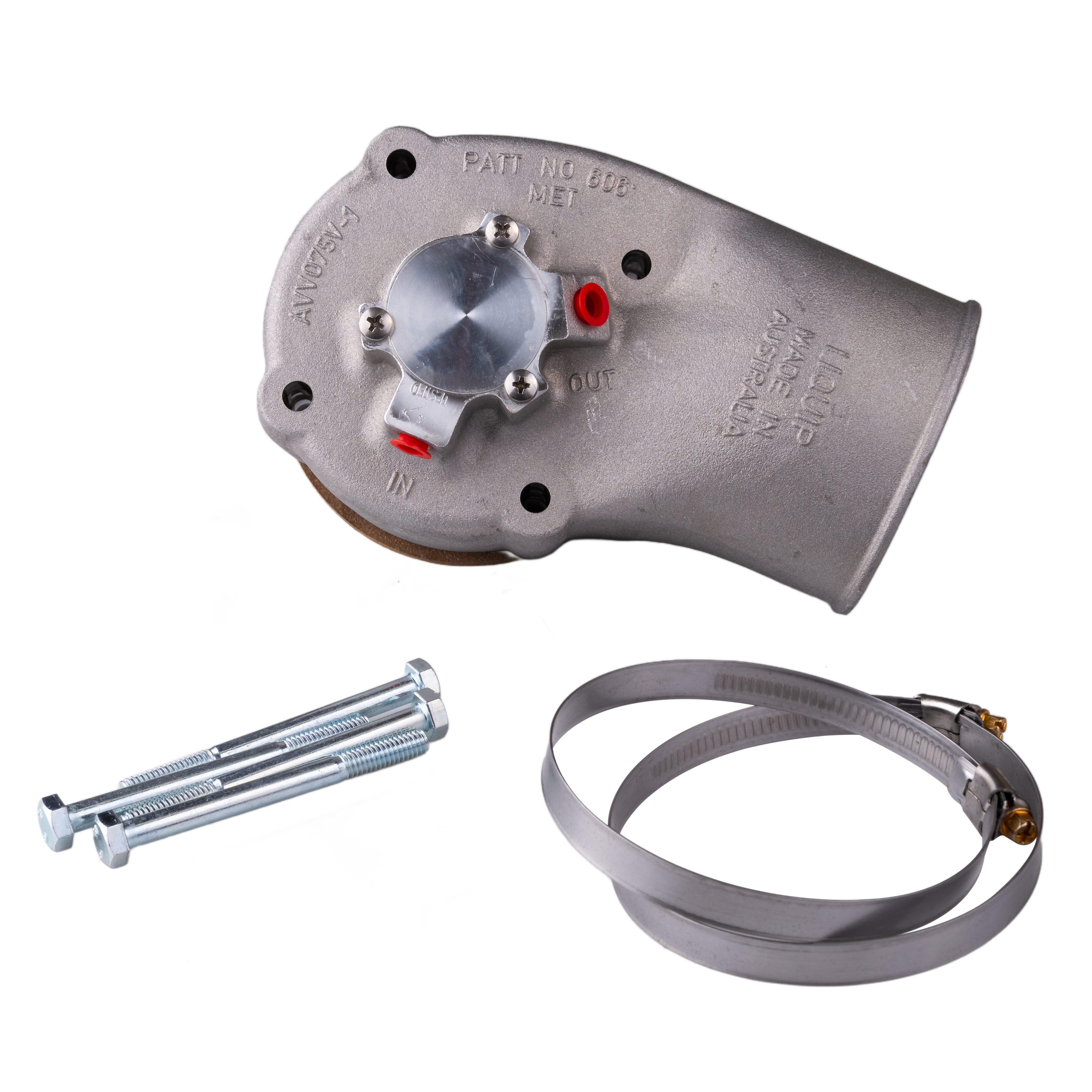

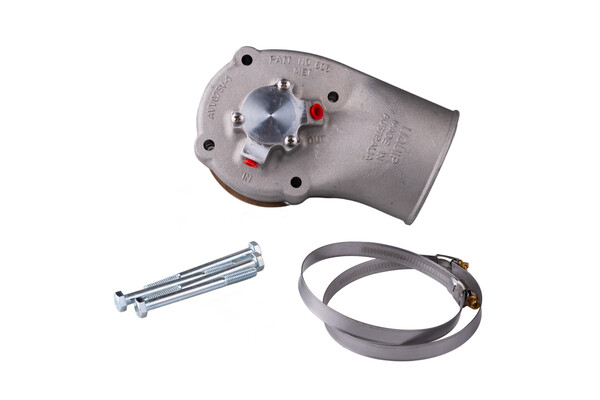

AVV075VW: Sequential Vapour Vent with through holes (Coaming mount).

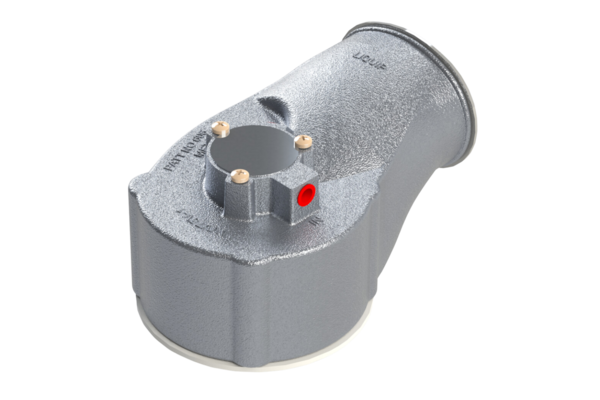

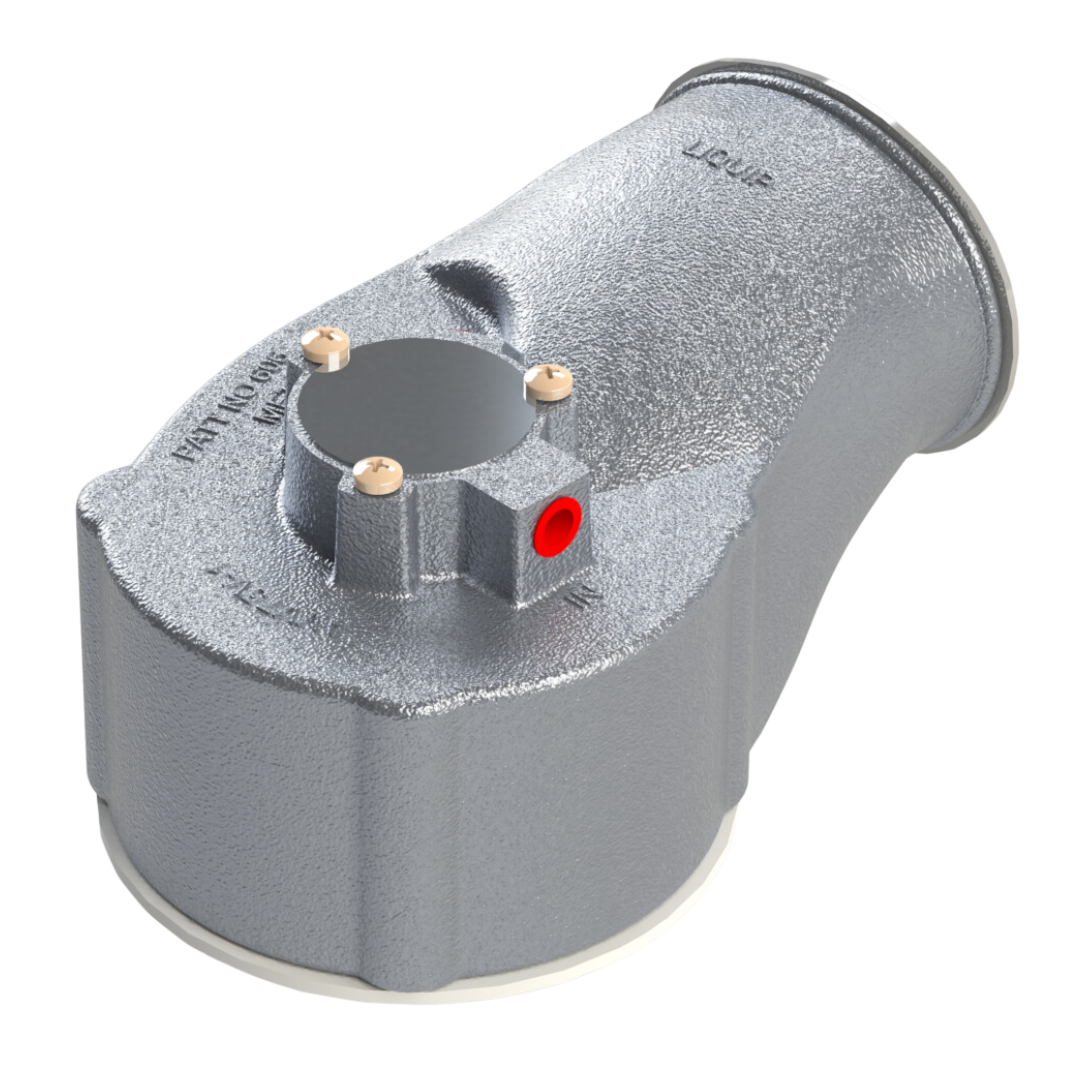

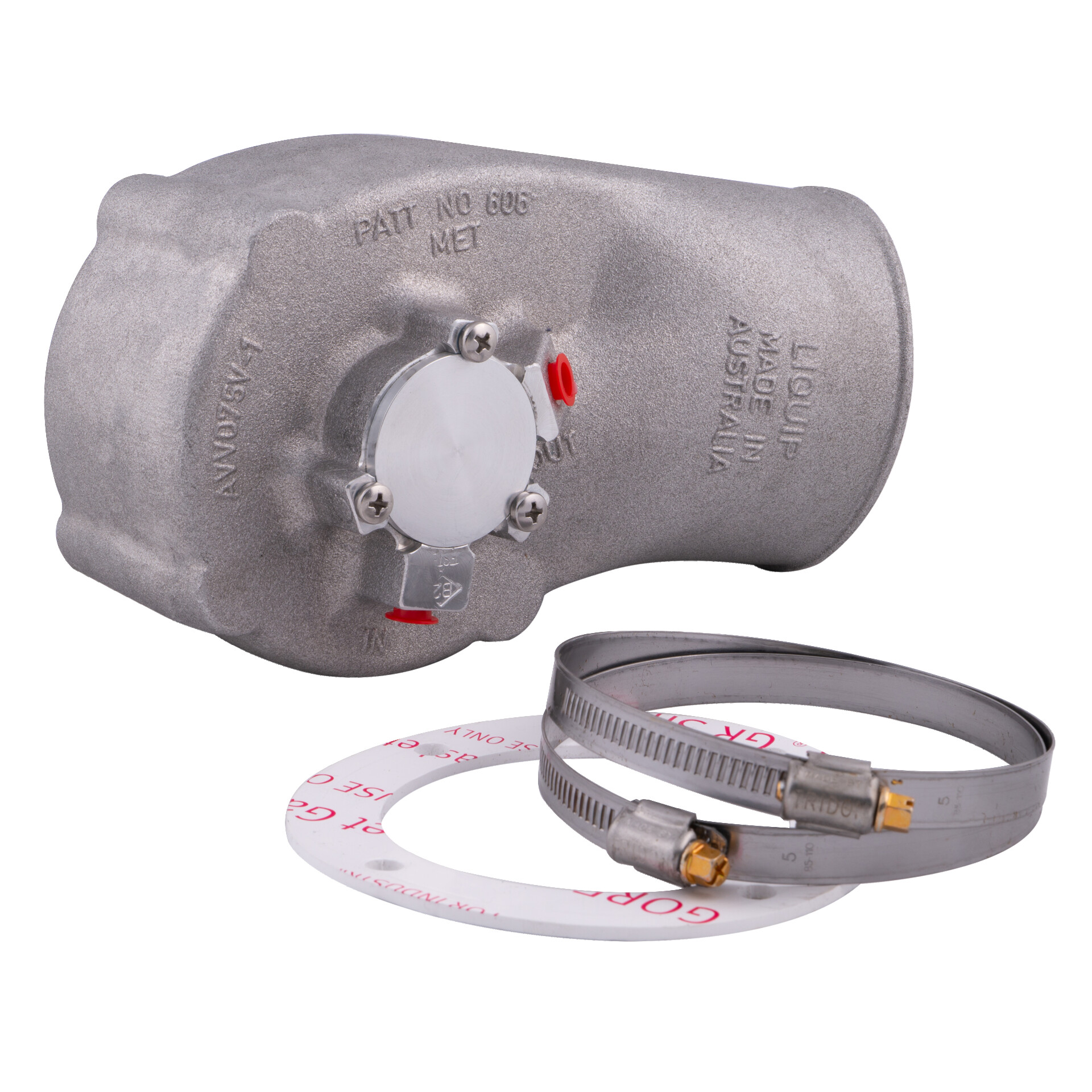

AVV075K: Chemical Version with Kalrez o-rings.

AVVF075V: Flange mounted sequential vapour recovery vent, mounts to VOH500 series only or separate weld in flanges (Viton A).

AVVF075VG: Flange mounted sequential vapour recovery vent, mounts to VOH500 series only or separate weld in flanges (VITON GFLT).

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	AVV075K	Chemical Version with Kalrez o-rings.
	AVV075V	Sequential Vapour Vent with Viton o-rings.
	AVV075VW	Sequential Vapour Vent with through holes (Coaming mount).
	AVVF075V	Flange mounted sequential vapour recovery vent, mounts to VOH500 series only or separate weld in flanges (Viton A).
	AVVF075VG	Flange mounted sequential vapour recovery vent, mounts to VOH500 series only or separate weld in flanges (VITON GFLT).
