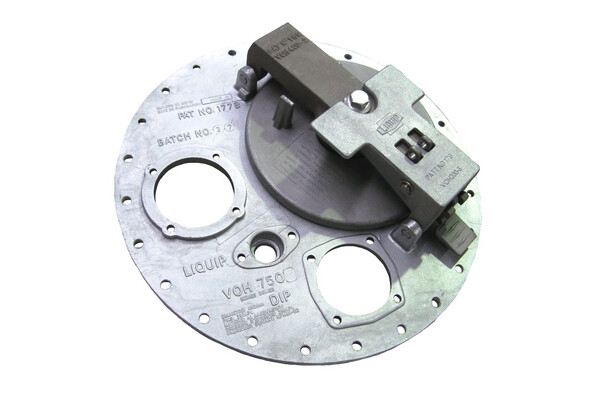

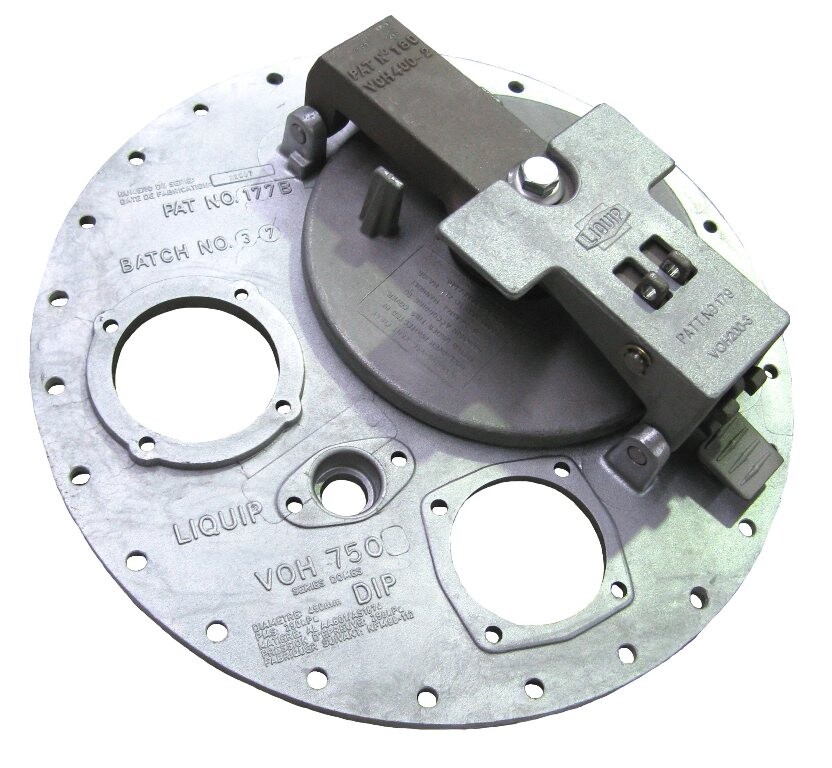

390mm Bolt Style Manhole Covers - VOH750 Series

Liquip offers a unique 390mm diameter access manhole cover to suit the specification of oil companies and transport fleets.

Liquip's VOH750 Series Manhole Covers are available in cast aluminium and come with three equipment mounting positions for overfill protection, vapour recovery and Dip & Fill accessories.

Australian drop test approval makes these manholes ideal for both top and bottom loading.

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Features & Benefits

Australian drop test approved.
Cast aluminium lightweight & durable construction.
Two stage opening mechanism enables internal pressure to be released before completely opening the manhole cover.
225mm (9") emergency pressure vent included to enable bulk pressure release in event of a fire or rollover.
Emergency vent doubles as an easy to open inspection hatch for top loading or visual inspection.
Can be fitted with a 1” thermal pressure & vacuum vent complying with recognised industry codes (for thermal expansion purposes).
Any mounting positions not utilised can be securely blanked off until required.
Available with either a plain or lockable handle.
Secure Locking Feature via Gravity Latch or Lockable Bridge & Handle.
Fully metric hatch and accessories for enhanced serviceability.

Ordering Information

VOH7506A8A0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104, no Gravity latch.

VOH7506A8O0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV blank plate, no Gravity latch.

VOH7506B8U0: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) plain handle, PVV104U, no Gravity latch.

VOH7506B8U1: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) plain handle, PVV104U, with Gravity latch.

VOH7506U8U0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104U, no Gravity latch.

VOH7506U8U1: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104U, with Gravity latch.

VOH7507A8A0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104, no Gravity latch.

VOH7507B8U0: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) lockable handle, PVV104U, no Gravity latch.

VOH7507B8U1: VOH750 Manhole 24 Bolt, Alum bridge (24kPa) lockable handle, PVV104U, with Gravity latch.

VOH7507U8U0: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104U, no Gravity latch.

VOH7507U8U1: VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104U, with Gravity latch.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	VOH7506A8A0	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104, no Gravity latch.
	VOH7506A8O0	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV blank plate, no Gravity latch.
	VOH7506B8U0	VOH750 Manhole 24 Bolt, Alum bridge (24kPa) plain handle, PVV104U, no Gravity latch.
	VOH7506B8U1	VOH750 Manhole 24 Bolt, Alum bridge (24kPa) plain handle, PVV104U, with Gravity latch.
	VOH7506U8U0	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104U, no Gravity latch.
	VOH7506U8U1	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) plain handle, PVV104U, with Gravity latch.
	VOH7507A8A0	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104, no Gravity latch.
	VOH7507B8U0	VOH750 Manhole 24 Bolt, Alum bridge (24kPa) lockable handle, PVV104U, no Gravity latch.
	VOH7507B8U1	VOH750 Manhole 24 Bolt, Alum bridge (24kPa) lockable handle, PVV104U, with Gravity latch.
	VOH7507U8U0	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104U, no Gravity latch.
	VOH7507U8U1	VOH750 Manhole 24 Bolt, Alum bridge (30kPa) lockable handle, PVV104U, with Gravity latch.
