Trench Widths up to 1m (40”) – End to End Configuration

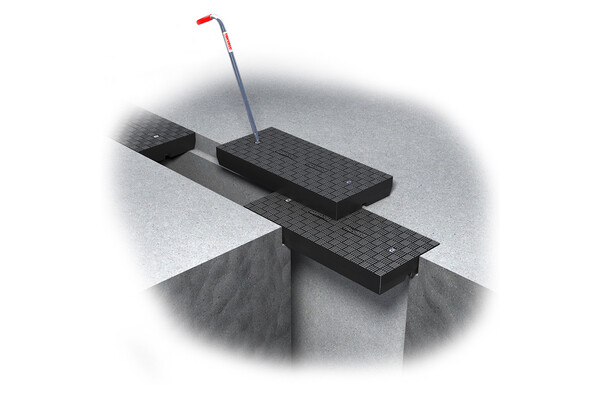

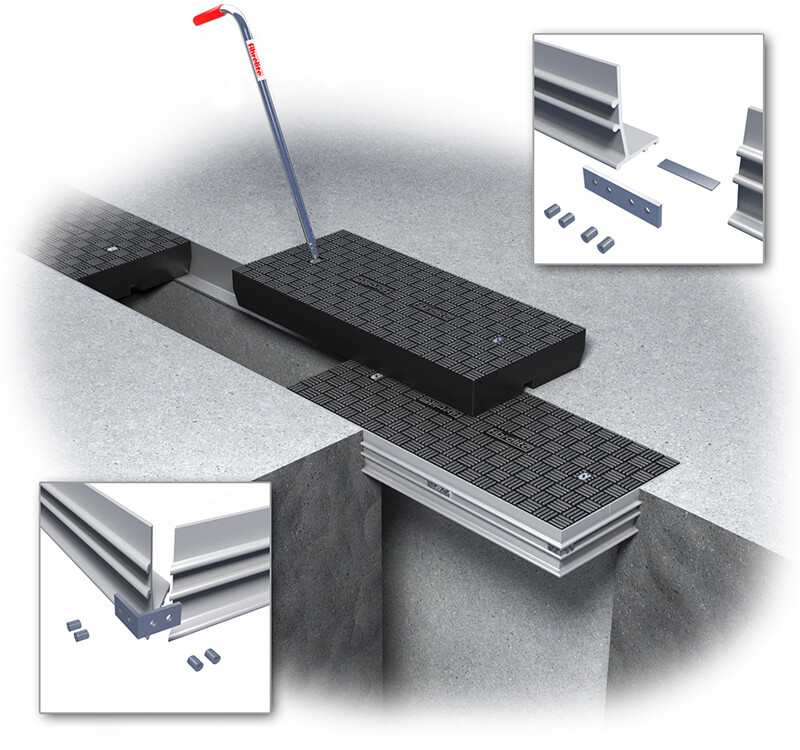

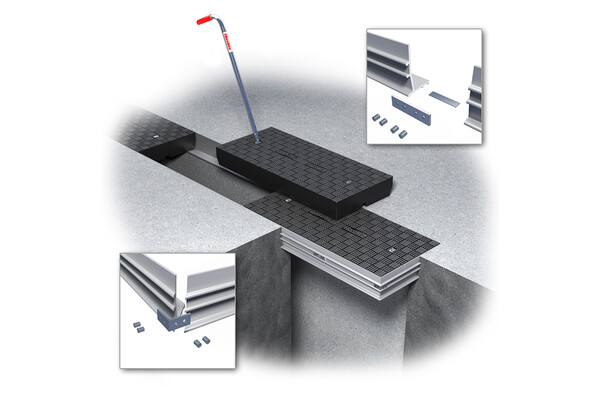

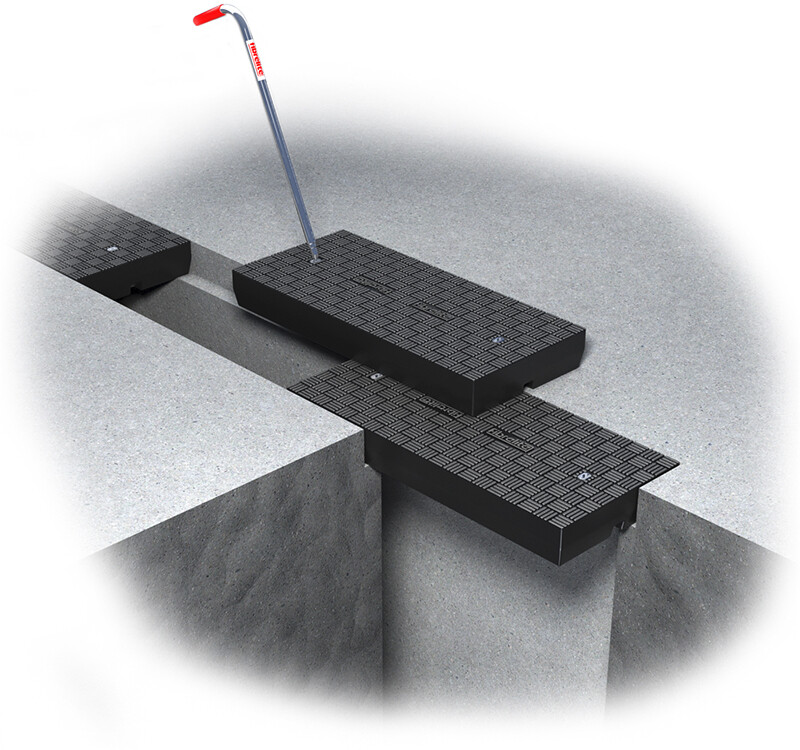

Frame or Rebate Installation

Technical Information

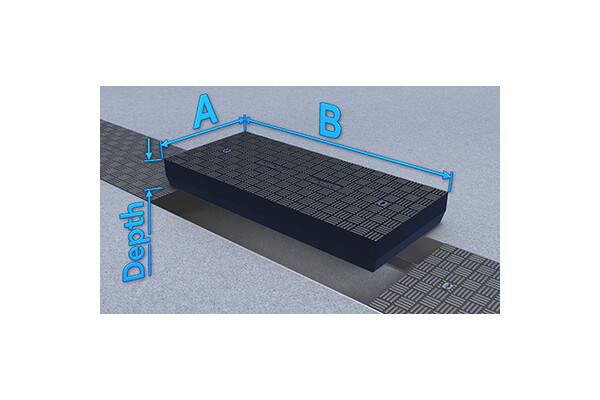

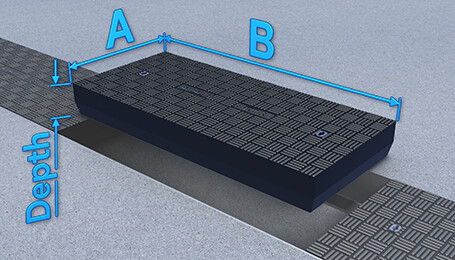

Dimension ’A’	Dimension ’B’	Depth	Weight
300 - 700mm (12" - 28")	450 - 1800mm (18" - 72")	76mm (3")	48 kg/M² (10 lbs/ft²)
700 - 1000mm (28" - 40")	900 - 1200mm (36" - 48")	76mm (3")	48 kg/M² (10 lbs/ft²)
300 - 1000mm (12" - 40")	600 - 1200mm (24" - 48")	101.6mm (4")	46 kg/M² (9 lbs/ft²)
300 - 500mm (12" - 20")	450 - 1800mm (18" - 72")	117mm (4 5⁄8")	60 kg/M² (12 lbs/ft²)
500 - 1000mm (20" - 40")	450 - 1000mm (18" - 40")	117mm (4 5⁄8")	60 kg/M² (12 lbs/ft²)
300 - 1000mm (12" - 40")	450 - 700mm (18" - 28")	203.2mm (8")	83 kg/M² (17 lbs/ft²)
