Remote Probe Holders

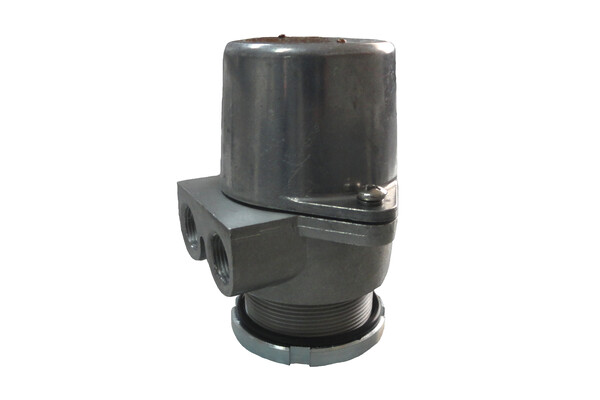

Liquip offers a PJB500, remote probe holder, which is a walkway or manhole cover mounted overfill probe holder.

It provides a protected, clean and dry environment to mount overfill probes to tanker walkways and manhole covers.





Recommended products for replacement

Categories
Features & Benefits
  • Housing can be mounted in a hole and sealed with the locknut or screwed directly into a 2" BSP thread.
  • Adjustable height by loosening internal capscrews and sliding probe up or down to the correct sensing height.
  • The body has two M20 x 1.5mm entries. This eliminates the need to mount a tee with cover in the conduit line. This will allow for better connections and easier fault finding.
Technical Information

Probes
-Will accommodate probe diameters of 22.3mm to 25.5mm (such as Liquip LDP style).
-Maximum length of probe inside housing is 87mm.

Mounting
-Plate thickness for mounting is from 4 to 17mm.
-Mounting via 50mm (2") BSP male thread or into 62mm dia. hole.

Height
Overall height when mounted is 96mm, overall diameter is 110mm.

Materials
-Lid & body: Aluminium
-Seals: Nitrile
-Screws & Washers: Zinc plated.

Ingress Protection
IP66.

Ordering Information

PJB500: Remote Overfill Probe Holder.

Associated Equipment

LDP202: 2 wire Aluminium Overfill Probe.

LDP205: 5 wire Aluminiun Overfill Probe.

LDP102-4: Aluminium probe extension (80mm).

LDP105-2: Aluminium probe extension (222mm).

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart

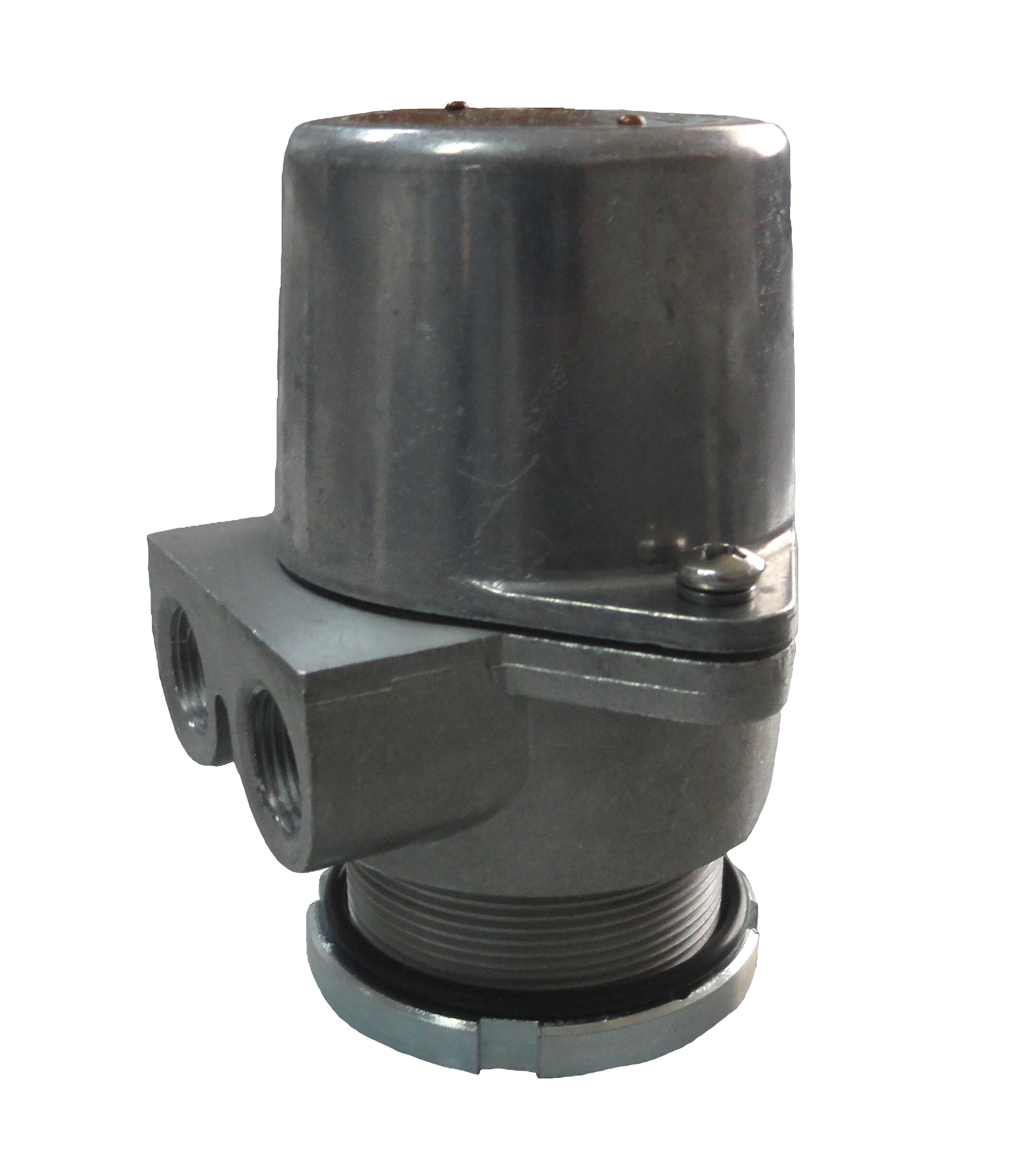

PJB500 Remote Overfill Probe Holder
