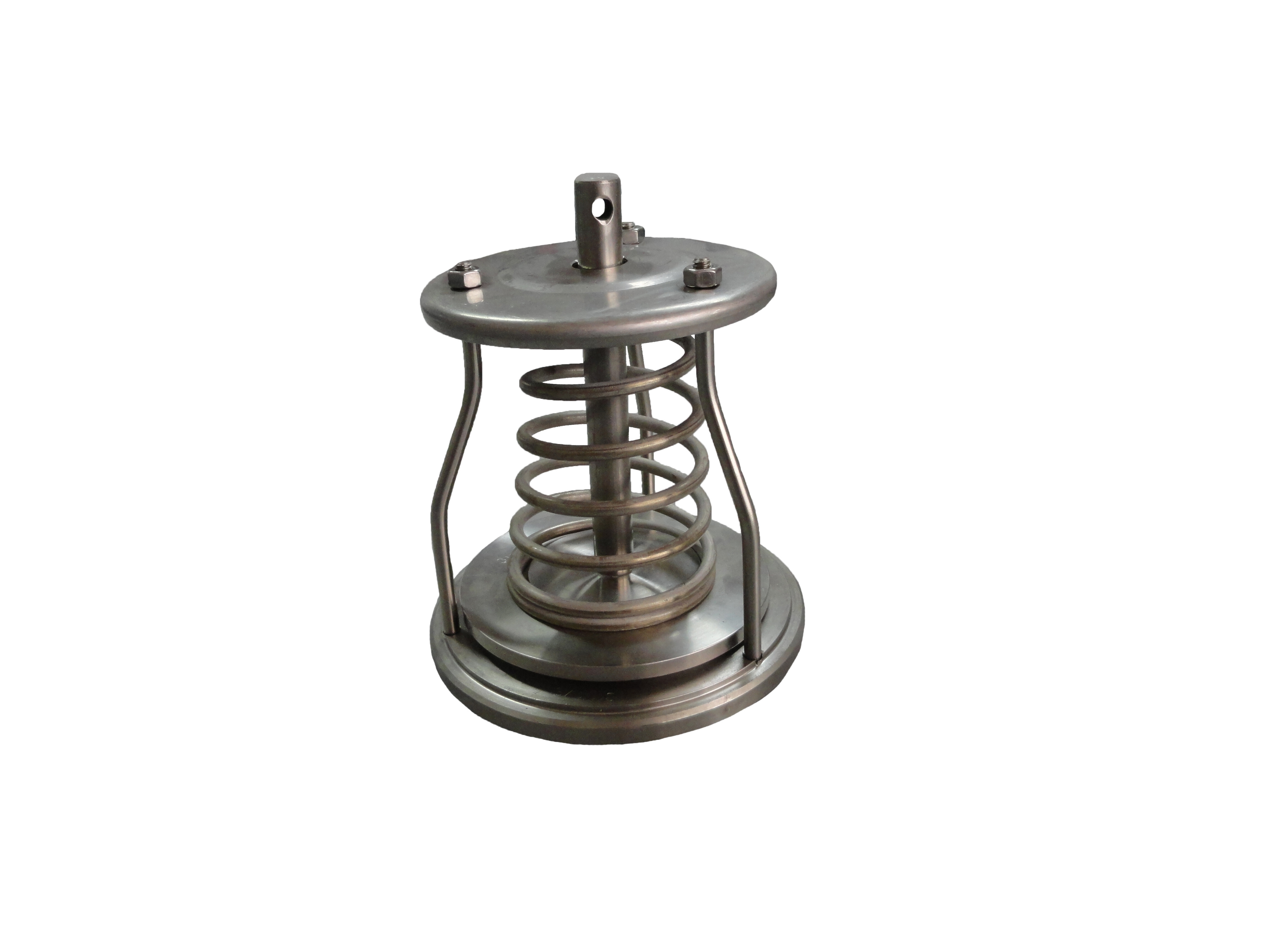

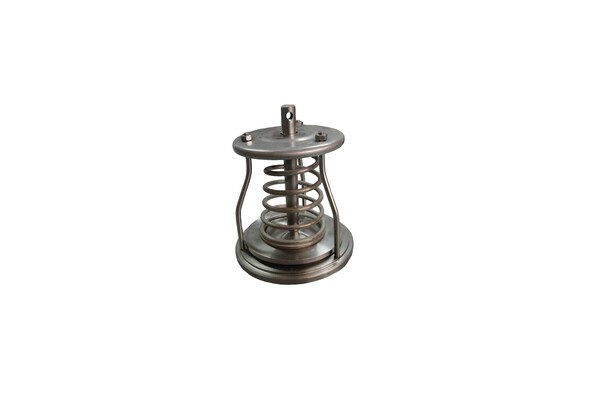

ITV4 Series Internal Chemical Valve



Stainless Steel emergency valve with Teflon Trim for mild chemicals.

This unit is constructed of stainless steel components and provides a non-contaminating valve for use with a wide range of chemical products.

Tapered seat provides improved sealing with Teflon.

Teflon seals are available in basic form for top operation or with bottom operating elbow.

Recommended products for replacement

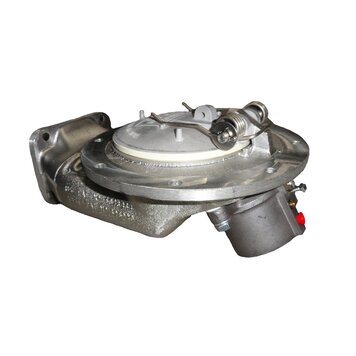

  • Chemical Air Operated Emergency Valve
    The Liquip SLV5-AROC penumatic Chemical Trim (FFKM) Valve leads the industry with its low profile, low splash and vortex free design which minimises static and also enables faster tanker unloading than traditional mushroom poppet valves.
Technical Infiormation
  • Opens under 35 kPa pressure from below.
  • Permissible lift 50mm.
  • All components are stainless steel. E.g. Spring retainer, poppet and seat.
  • All Teflon seals.
  • Tank weld flange supplied separately.
  • Weight: 1.8kg.

ITV4-B-ST-316*: Internal Chemical Valve.

* Parts are made to order and hold minimum order quantities. Please consult Liquip for further information.

  • SE4* - Outlet elbows (plain).
  • OLE4* - Outlet elbows (operating).
  • CL401RST316* - Stainless Steel Top Operators.
  • ITV4-14* - Deflector.
  • LW410 - Lifting Wire.

* Parts are made to order and hold minimum order quantities. Please consult Liquip for further information.
