Trench Widths over 1m up to 1.6m (40”-64”) – Side by Side Configuration

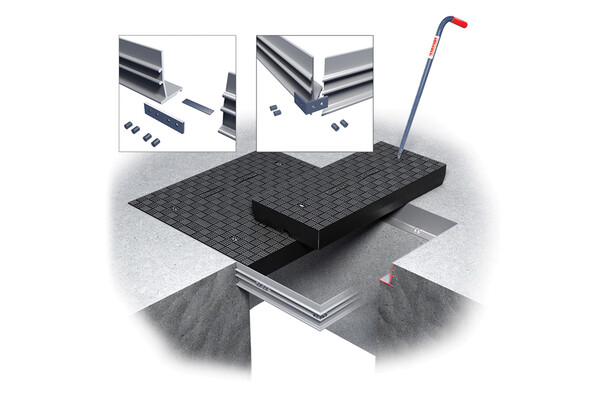

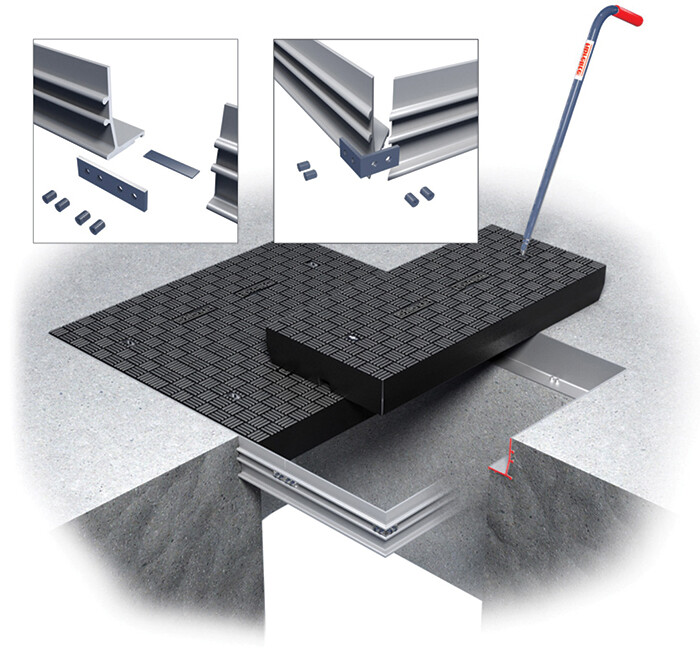

Frame or Rebate Installation

Technical Information

Dimension ’A’	Dimension ’B’	Depth	Weight
1000 - 1200mm (40" - 48")	450 - 800mm (18" - 32")	117mm (4 5⁄8")	60 kg/M² (12 lbs/ft²)
1200 - 1400mm (48" - 56")	450 - 700mm (18" - 28")	117mm (4 5⁄8")	67 kg/M² (14 lbs/ft²)
1400 - 1600mm (56" - 64")	450 - 500mm (18" - 20")	117mm (4 5⁄8")	75 kg/M² (15 lbs/ft²)
1000 - 1200mm (40" - 48")	450 - 600mm (18" - 24")	203.2mm (8")	83 kg/M² (17 lbs/ft²)
1200 - 1400mm (48" - 56")	450 - 500mm (18" - 20")	203.2mm (8")	83 kg/M² (17 lbs/ft²)
