Trench Widths up to 1m (40”) – End to End Configuration

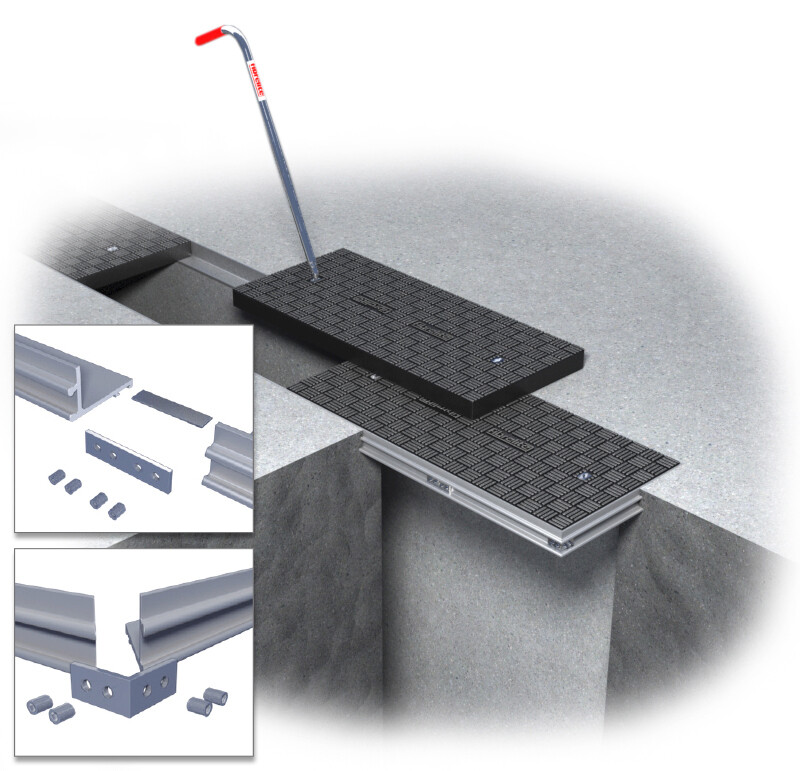

Frame or Rebate Installation

Technical Information

Dimension ’A’	Dimension ’B’	Depth	Weight
300 - 1000mm (12" - 40")	450 - 1800mm (18" - 72")	50mm (2”)	26 kg/M² (5 lbs/ft²)
300 - 1000mm (12" - 40")	450 - 1800mm (18" - 72")	76mm (3")	30 kg/M² (6 lbs/ft²)
300 - 1000mm (12" - 40")	450 - 1800mm (18" - 72")	101.6mm (4")	32 kg/M² (7 lbs/ft²)
300 - 1000mm (12" - 40")	450 - 1800mm (18" - 72")	117mm (4 5⁄8")	37 kg/M² (8 lbs/ft²)
300 - 1000mm (12" - 40")	450 - 1200mm (18" - 48")	203.2mm (8")	51 kg/M² (10 lbs/ft²)
